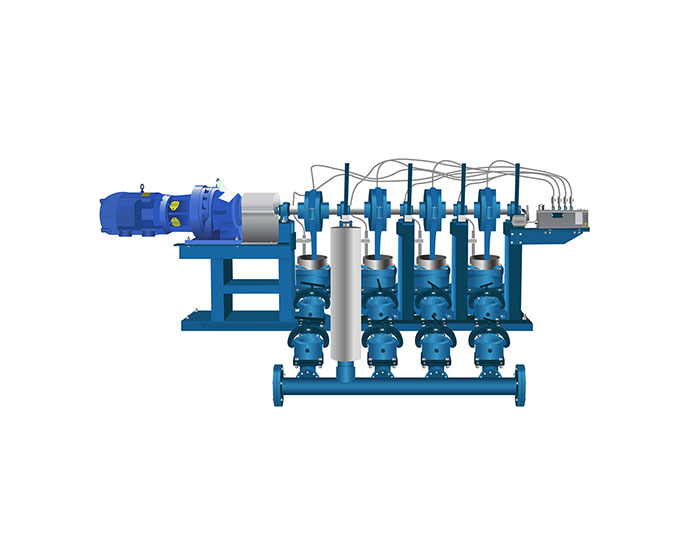

Heavy Duty Series Plunger Pumps
Heavy Duty 805-HD
12.25” Duplex Heavy Duty Plunger Pump
Pump up to 255 GPM with up to 80 feet of total dynamic head with the Heavy Duty 805-HD.
- 12.25” Plunger Diameter
- 255 GPM
- 80 Feet Head
More Product Details
| NUMBER OF PLUNGERS | 2 |
| MAXIMUM CAPACITY | 255 GPM |
| MAXIMUM TOTAL DYNAMIC HEAD | 80’ |
| CONNECTION | ANSI B16.1 CLASS 125 – 4” OR 6” |
| PLUNGER DIAMETER | 12.25” |
| ECCENTRIC DIAMETER & CROSS-SECTIONAL WIDTH | 10” X 2” |
| SHAFT DIAMETER | 2.187” |
| PIN POSITIONS | 14 |
| STROKE LENGTH | 5.125” |
| MAXIMUM STROKES PER MINUTE | 50 |
| BALL CHECK VALVES | 5.125” URETHANE WITH STEEL CORE (7.5 LBS) |
| AIR CHAMBERS | 8” X 36” (1,800 CUBIC INCH) |
| APPROXIMATE WEIGHT | 2,600 LBS |
